FILTRATION . SFCT – PSF

Pressure
Sand Filter

Proven pressure filtration at up to 20 m³/hr/m², with 3-step air–water backwashing and a state-of-the-art filter bottom. Compact, economical and built to ASME.

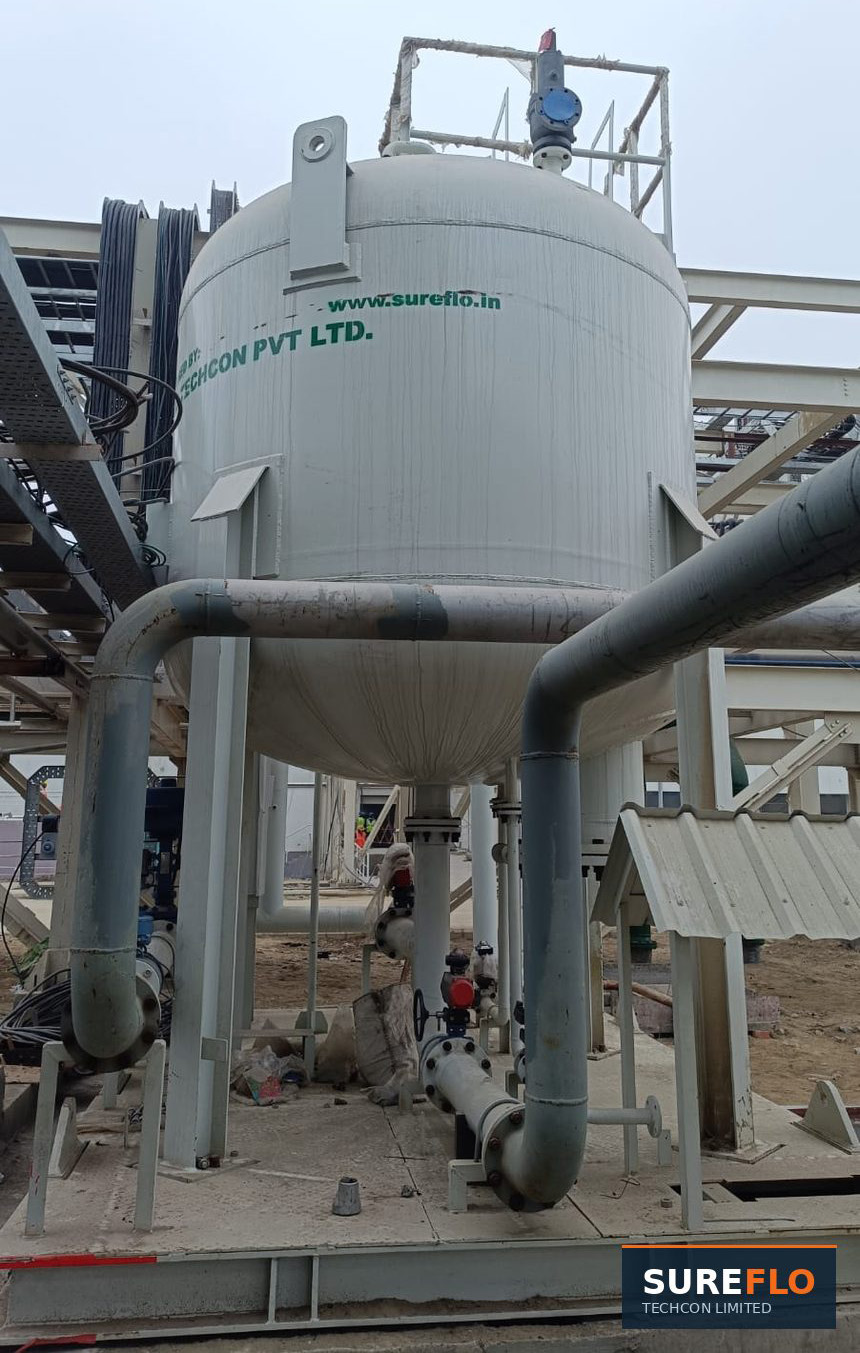

Pressure Sand Filter

20 m³/hr/m²

High velocity filtration rate

300 m³/hr

Single unit capacity

100 ppm

Inlet TSS handled

ASME

Vessel design standard

20 m³/hr/m²

High velocity filtration rate

300 m³/hr

Single unit capacity

100 ppm

Inlet TSS handled

ASME

Vessel design standard

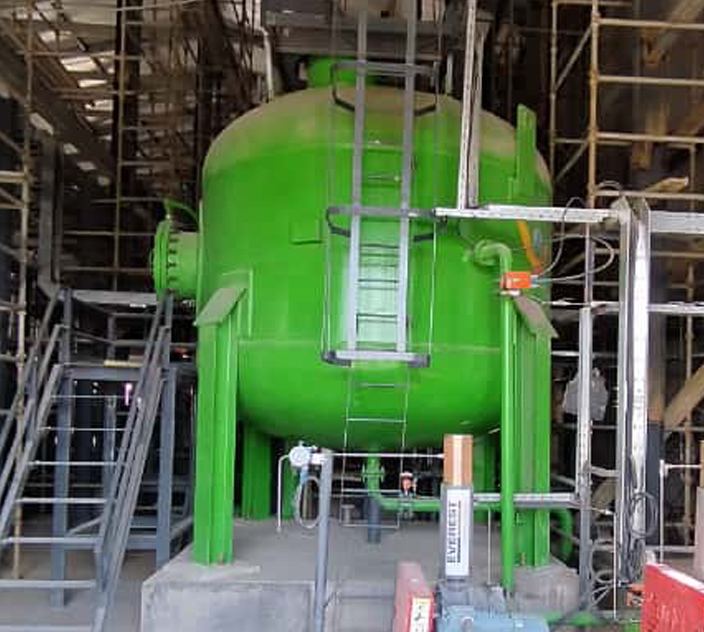

SFCT-PSF on site

HIGH VELOCITY DESIGN

COMPACT, ECONOMICAL,
PROVEN

The SFCT-PSF operates at up to 20 m³/hr/m² — an exceptional capacity for a pressure sand filter, keeping the vessel compact and the installation economical while delivering filtrate of superior quality.

Because it is a pressure vessel, line pressure is retained through the filter. There is no re-pumping downstream, which makes it the natural choice inside an existing pressurised circuit.

Line pressure kept
Compact
ASME

DESIGN FEATURES

FIVE SPECIAL FEATURES

VELOCITY

HIGH VELOCITY DESIGN

Competent to operate at up to 20 m³/hr/m² of filter area, keeping the unit both compact and economical without compromising filtrate quality.

MEDIA

SPECIAL FILTER MEDIA

Mono crystalline quartz sand of selected particle size with accurate graduated sizing, removing inlet suspended solids up to 100 ppm.

BACKWASH

3-STEP AIR–WATER WASH

Primary air scouring, secondary washing with air and water, then tertiary washing with water. Streams enter below the drain system and are forced concurrently up through the bed, dislodging accumulated impurities.

DISTRIBUTION

UNIFORM AIR–WATER DISTRIBUTION

A state-of-the-art filter bottom ensures uniform flow during both service and backwash and prevents head loss, with air supplied through lower-lying distributor pipes containing outlet ports.

EFFICACY

ENHANCED BACKWASH

Air distributed by positive control is then distributed by wash water uniformly at no loss of head. The washing effect of water and air is cumulative, achieving high backwash efficacy.

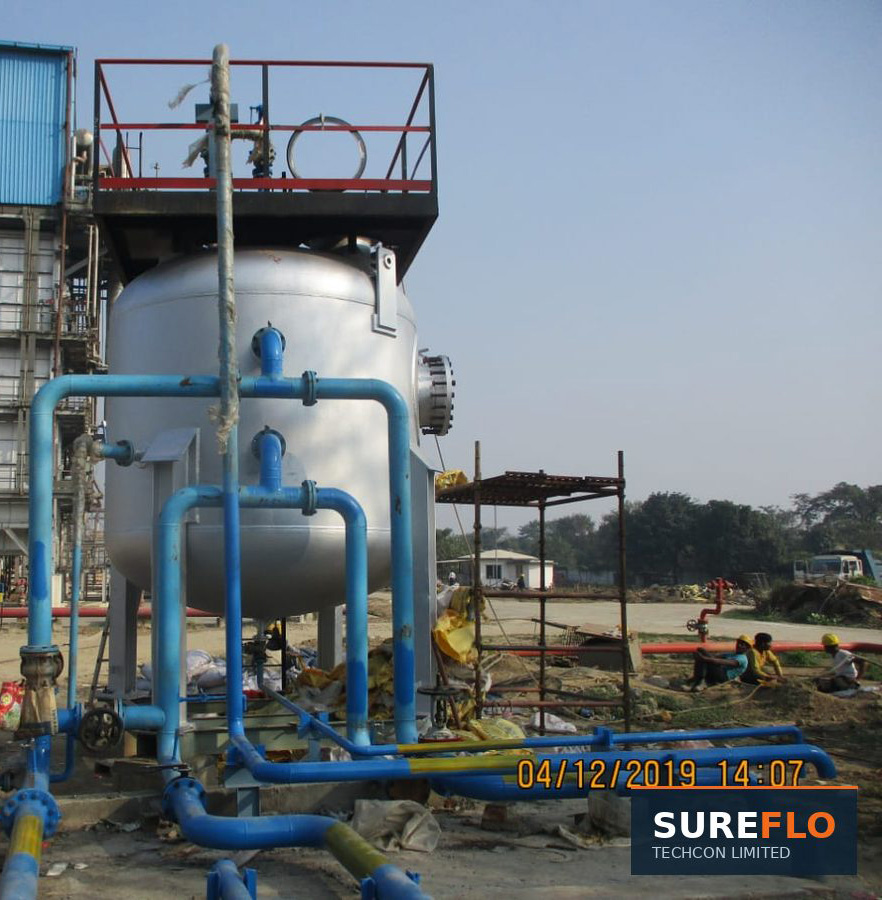

FULL PIPEWORK
Service, backwash, rinse and air connections brought to grade

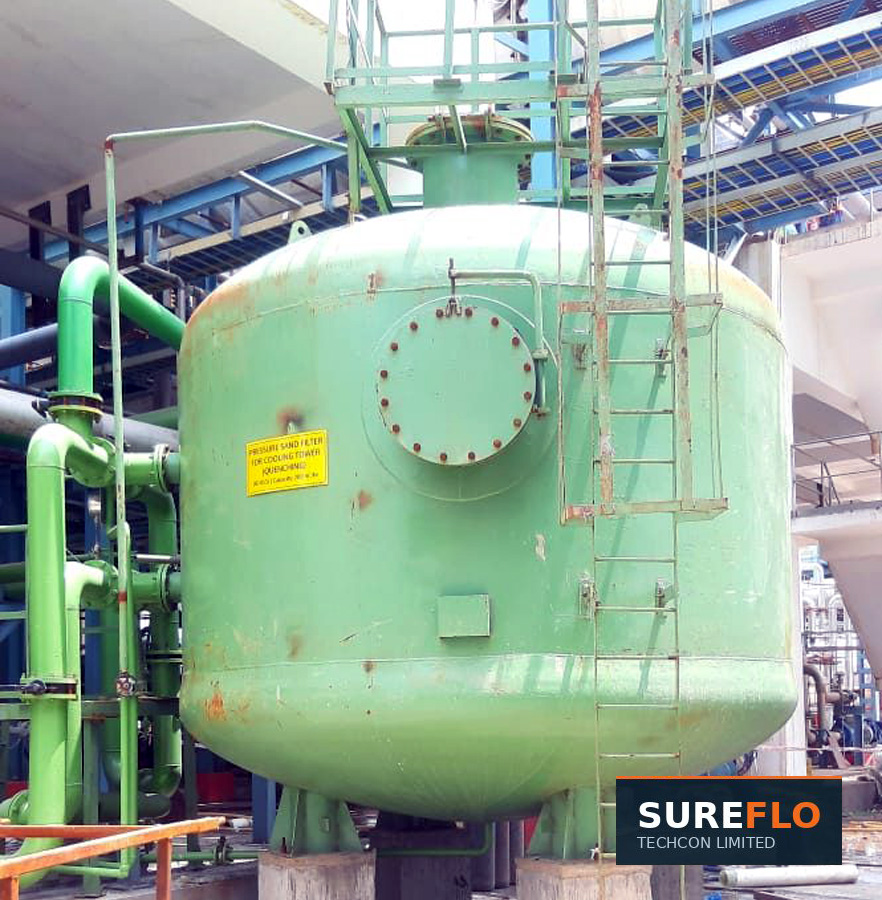

QUENCHING DUTY
Nameplated for cooling tower service

SPECIFICATIONS

CAPACITY & CONSTRUCTION

Filtration rate Up to 20 m³/hr/m²
Single unit capacity Up to 300 m³/hr; multiple filters lined up for higher capacity
Inlet TSS Up to 100 ppm
Filter media Monocrystalline quartz sand, selected particle size, accurately graduated
Backwash 3-step air–water: air scour, air + water, water
Vessel standard Indian and international standards including ASME
Materials Permutation of materials offered to customer requirement
Installation Self-supporting, corrosion-protected, suitable indoor or outdoor
Operation Manual, semi-automatic or fully automatic

MODEL SELECTION

Models are selected based on various inlet parameters such as TSS, Turbidity, PSD and also on required outlet quality. For flow rates above a single unit’s capacity we offer Battery of Filters to meet the requirement.

APPLICATIONS

WHERE THE PSF IS USED

COOLING TOWER SIDE-STREAM

Side-stream filtration on recirculating cooling water within a pressurised circuit.

RO / UF / NF PRE-FILTRATION

Pre-filtration ahead of ultra-, nano- and reverse-osmosis systems.

RAW WATER FILTRATION

River, canal and reservoir water ahead of process or potable use.

TERTIARY & EFFLUENT TREATMENT

Polishing of treated wastewater and effluent before discharge or reuse.

CHOOSING A FILTER

THREE SAND FILTER OPTIONS

Sureflo builds all three, plus automatic backwash screen filters. Which suits depends on flow, available head, plot area and how much attention the filter can be given.

AVGF

Gravity, valveless, self-backwashing on head loss.

  • No power, valves or operator
  • 10–500 m³/hr per unit
  • Open tank, gravity head

HIGH RATE (HRF)

Pressure sand filter, modified for double the velocity.

  • Up to 40 m³/hr/m² — smallest footprint
  • Up to 600 m³/hr per unit
  • Pressure vessel, line pressure kept

PRESSURE SAND (PSF)

Conventional pressure filtration, proven and economical.

  • Up to 20 m³/hr/m²
  • Up to 300 m³/hr per unit
  • Pressure vessel, line pressure kept

Filtering to a precise micron size rather than removing a solids load? See automatic backwash screen filters

SEND US YOUR
FLOW AND FEED QUALITY.

We will size the vessel, confirm the media specification and share a general arrangement drawing.
