SEPARATION · W-SERIES

Decanter
Centrifuge

Nine model sizes, 200-700 mm bowl, 0.5-45 m³/hr. Two-phase and three-phase continuous separation – designed, built and factory-tested in India.

2-phase & 3-phase
PLC + HMI + VFD
Built in Goa

9

Model sizes · ST-200W to ST-700W

45 m³/hr

Maximum feed capacity

700 mm

Maximum bowl diameter

8+

Industries served

9

Model sizes · ST-200W to ST-700W

45 m³/hr

Maximum feed capacity

700 mm

Maximum bowl diameter

8+

Industries served

Decanter Centrifuge

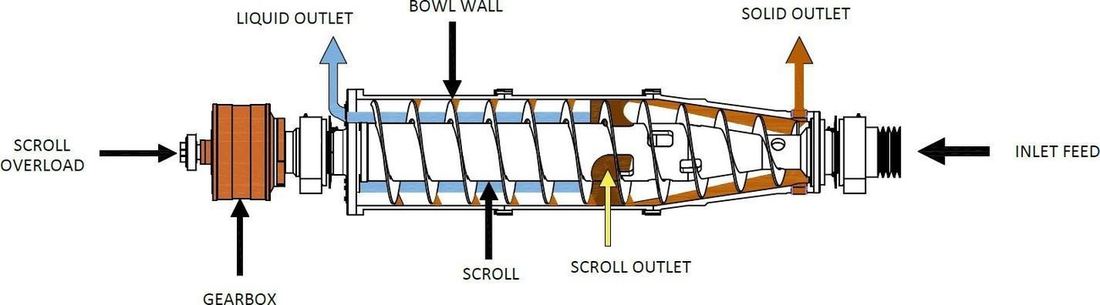

INTERNAL CUTAWAY · BOWL & SCROLL

WORKING PRINCIPLE

CONTINUOUS SEPARATION
ACROSS THE FULL BOWL

Feed slurry enters the rotating bowl through a stationary inlet tube and is accelerated by centrifugal force. Solids are driven to the bowl wall and conveyed by the scroll toward the conical discharge end.

Clarified liquid exits over adjustable plate dams at the opposite end. Separation runs continuously across the full bowl length — no batching, no interruption.

2-phase
3-phase
Continuous duty

KUNDAIM, GOA

BUILT AND TESTED
UNDER OUR ROOF

Bowls, conveyors and frames are fabricated in-house, assembled, and run against their own control panel before a machine ships.

W-SERIES

TECHNICAL SPECIFICATIONS

Nine model sizes covering 0.5 to 45 m³/hr. Feed capacity is indicative and varies with feed material.

Specification ST-200W ST-300W ST-360W ST-400W ST-460W ST-500W ST-600W ST-660W ST-700W
Bowl diameter 8″ 12″ 14″ 16″ 18″ 20″ 24″ 26″ 28″
Feed capacity (m³/hr) 0.5–1.5 3–5 6–12 12–17 15–20 18–24 20–30 28–36 35–45
Main drive (HP/kW) 10/7.5 25/18.5 40/30 50/40 60/45 75/55 75/55 100/75 125/90
Cake dryness Up to 20% — varies by process application
Solid density (kg/dm³) 1.2 standard
Operation mode Fully automatic (PLC + VFD + HMI) or manual

* Feed capacity is indicative and varies with feed material. Specifications subject to change without prior notice. Scroll table sideways on mobile.

CONTROL & DRIVES

FULLY AUTONOMOUS OPERATION

Every unit ships fully assembled and factory-tested with an integrated PLC + HMI + VFD control system.

HMI TOUCHSCREEN

PLC CONTROL SYSTEM

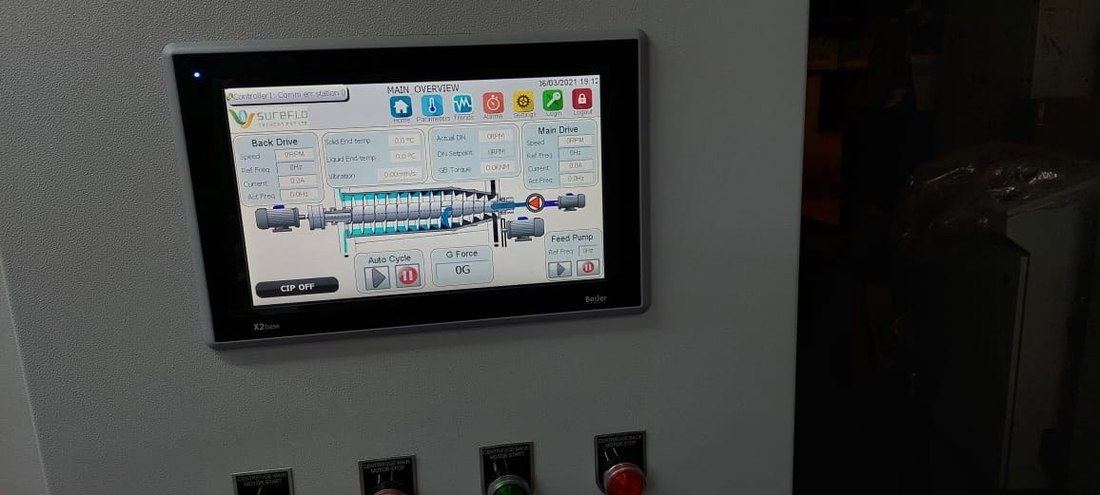

SUREFLO HMI TOUCHSCREEN

Live monitoring of RPM, differential speed, G-force, temperature, vibration and torque. Auto cycle and CIP built in as standard.

  • Real-time parameter monitoring across all key variables
  • Dual VFD control on main drive and back-drive
  • Automatic cycle sequencing
  • Clean-in-place (CIP) routine built in

SINGLE DRIVE

Fixed differential speed — constant solids throughput, lower capital cost. Suits stable, well-characterised feeds.

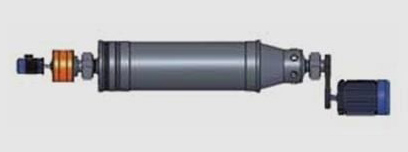

DUAL DRIVE

Variable differential speed, auto-optimised via HMI. Handles fluctuating feed solids without operator intervention.

CONSTRUCTION

MATERIALS & WEAR PROTECTION

Abrasive feed destroys under-specified decanters. Every high-wear zone is protected twice over.

  • Wetted surfaces – high-grade stainless steel throughout; high-strength SS side hubs

  • Feed zone – full-flow design, no blockage or back-pressure

  • 360° solids outlet – maximum discharge area with replaceable hard inserts

  • Frame – mild steel, epoxy paint, vibration isolators

  • Ex options – flame-proof PLC; Zone 1 & Zone 2 purge panels

SOLIDS OUTLET

360°

ALL WETTED PARTS

SS316

BOTH DRIVES

VFD

HAZARDOUS AREA

Ex rated

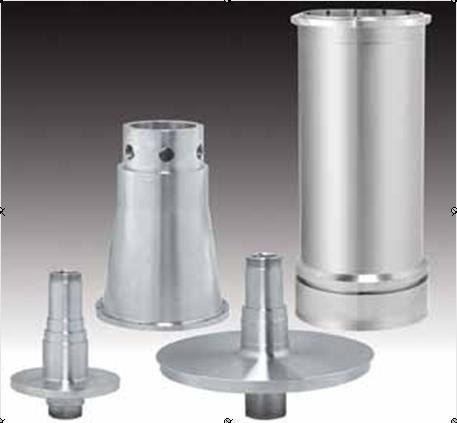

SS BOWL, INLET CONE & HUB

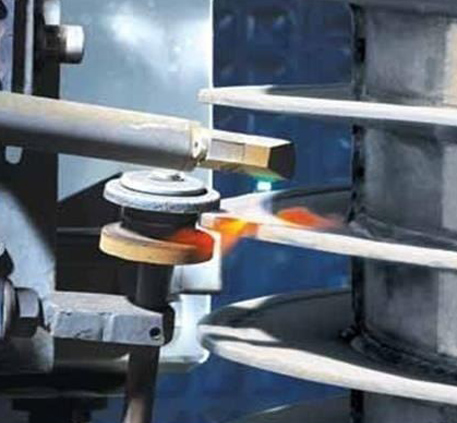

TC PLASMA SPRAY
Hardness-bonded tungsten carbide across every conveyor flight

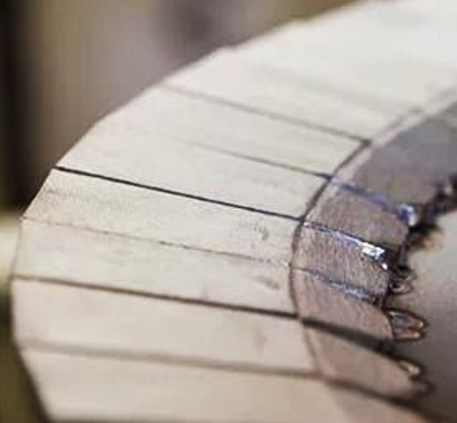

TC TILE INSERTS
Field-replaceable — renew the wear face, not the conveyor

IN SERVICE

SKID MOUNTED,
BAGGING BELOW

Mounted at height so dewatered cake drops straight into jumbo bags underneath — no intermediate handling; a conveyor can be added on request.

The same arrangement runs alongside our robots when a site needs removal and processing as one contract.

REFINERY · ELEVATED SKID

INDUSTRIES & APPLICATIONS

EIGHT SECTORS, ONE MACHINE FAMILY

ENVIRONMENTAL / MUNICIPAL

Sludge thickening and dewatering from municipal wastewater, biomass and manure treatment plants.

CHEMICAL & PHARMA

Purification and recovery in pharmaceuticals, biotech, specialty chemicals and non-conventional fuels.

OIL, GAS & REFINING

Fuel and lube oil treatment; recovery of slop oils, tank bottoms and bilge water at refineries.

FOOD & BEVERAGE

Juice clarification, wine processing and edible additive extraction to the highest hygiene standards.

OLEO-CHEMICAL

Vegetable oil processing and recovery of exhaust and waste oils in oleo-chemical production plants.

RECYCLING & DRILLING

Recovery of industrial fluids, polymer recycling and drilling mud conditioning.

BUILT IN GOA, RUNNING ON SITE

FROM WORKSHOP TO PLANT

Bowls, conveyors and frames are machined and assembled at our own facility, then factory-tested before dispatch.

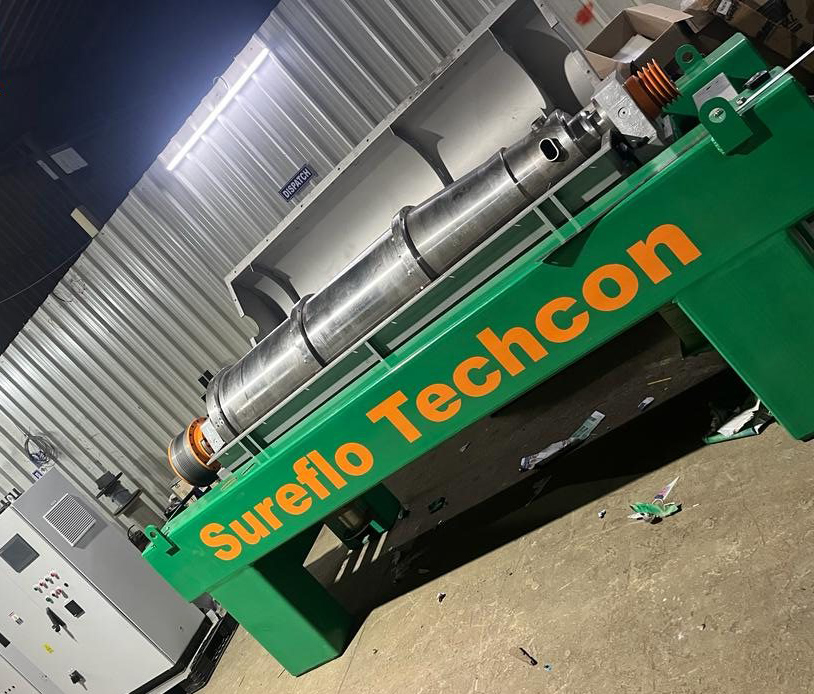

Decanter Centrifuge
W-SERIES DECANTER

BOWL & SCROLL
– assembly and control panel staged at dispatch

WHY SUREFLO

INDIAN ENGINEERING.
GLOBAL STANDARDS.

Designed, manufactured and factory-tested at our own facility in Goa — with engineering, spares and service all based in India.

  • In-house manufacture – bowls, conveyors and assemblies made by us

  • Spares held in India – wear parts available from local stock

  • Responsive service – Experienced Technicians for Erection & Commissioning

  • Application engineering – model, bowl and drive selected around your feed

  • Ships ready to run – fully assembled and factory-tested

  • Integrated option – can be supplied along with Dosing Systems, feed pumps, discharge pumps, conveyors

Indian Oil
BPCL & HPCL
MRPL
Petronas
Municipal STPs

SEND YOUR FEED RATE
AND SOLIDS CONTENT.

Our engineers will recommend the model, bowl configuration and drive system for your application.
